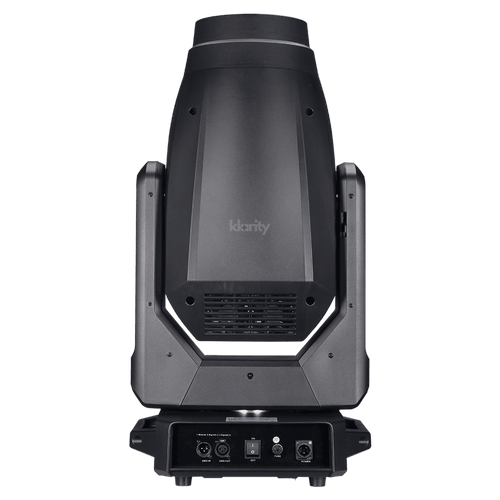

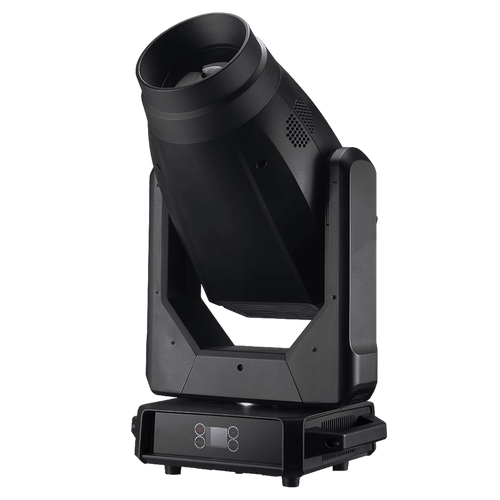

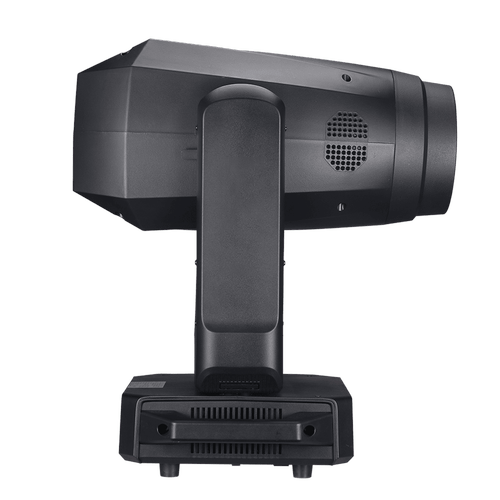

KLA-BEAM 600P
High Power 4 in 1 BSWP
The KLA-BEAM 600P is a high-output professional lighting fixture engineered for stages, auditoriums, and touring applications. Featuring a powerful 550W LED light engine, it delivers strong, consistent brightness with an adjustable gradient CRI system for optimized color rendering, along with precise beam shaping and creative projection capabilities. The fixture incorporates a linear CMY color mixing system with 2800K-6500K CTO control for smooth, accurate color transitions, supported by advanced optical, gobo, prism, and framing systems. Designed for reliability and performance, it offers fast, precise movement, sharp projections, and flexible control, making it well suited for demanding professional lighting environments.
KLA-BEAM 600P product video
- High-output LED engine - High-brightness performance powered by a 550W LED module
- Linear CMY color mixing - Smooth, accurate color blending with rich saturation and consistency
- Linear CTO (2800K-6500K) - Seamless daylight-to-tungsten color temperature control
- High CRI performance - Gradient CRI adjustment disc enables optimized color rendering for camera and stage applications
- Framing shutter system - Four independently controlled shutters for fast, precise beam shaping and full blackout
- Rotatable framing module - Cutting system rotatable ±45° for flexible orientation
- Prism system - 4-facet prisms with bi-directional rotation for enhanced aerial impact
- Fast, precise movement - Rapid pan/tilt with adjustable speed and optical auto-calibration
- Low-noise, high-torque motors - Quiet operation with fast response for professional environments
Specifications
Electrical
| Input Voltage | AC 100-240V, 50/60Hz |
| Power Consumption | 750W |
Light Source
| Light Engine | 550W LED light engine |
| Lifespan | 20,000 hours |
| Module Color Temperature | 6000K |
Optics
| Zoom Angle | 5°-45° |
| Aperture | 145 mm |
| Output | 16,573 lm |
| Color Rendering Index (CRI) | 70Ra |
Control and Programming
| Control Modes | DMX 512, RDM, self-running, master/slave, sound-activated |
| DMX Channels | 33 |
| Setting and Addressing | Control panel with backlit graphic display |
Safety
| Protection Rating | IP20 |
| Minimum Ambient Temperature | 41°F (5°C) |
| Maximum Ambient Temperature | 104°F (40°C) |
| Maximum Surface Temperature | 176°F (80°C) |
Dynamic Effects
| Color Mixing | Linear CMY color mixing system |
| Color Temperature Control | CTO, variable 2700K-7500K |
| Dimming | 0-100% linear dimming |
| Strobe | 1-20 Hz |
| Color Wheel | 1 color wheel with 6 fixed colors + open |
| Rotating Gobo Wheels | 2 |
| Rotating Gobo Wheel | 1 wheel with 7 gobos |
| Fixed Gobo Wheel | 1 wheel with 6 gobos + open |
| Framing System | 4 shutters rotatable up to ±45° |
| Iris | Mechanical linear iris |
| Prism System | 4-facet prism (bidirectional rotation) |
| Frost Filters | 1 light frost + 1 medium frost |
Movement
| Zoom | Motorized |
| Pan | 540° |
| Tilt | 270° |
Physical
| Dimensions | 730 x 520 x 389 mm |
| Net Weight | 33.5 kg |
Connections
| AC power input | PowerCon |
| DMX and RDM data in/out | 3 Pin XLR |
