KLA-FX22BL

High-performance 2 in 1 Blinder

The KLA-FX22BL is a professional dual-head LED blinder light designed for stages, theatres, broadcast environments, and House of Worship applications. Equipped with two high-output 200W Bi-color LEDs, it delivers intense illumination and powerful audience lighting effects . The fixture provides smooth 0–100% linear dimming and high-speed strobe capability, making it ideal for dramatic stage moments, audience lighting, and broadcast exposure lighting. Built with durable aluminum construction and efficient natural convection cooling, the KLA-FX22BL ensures reliable performance in professional lighting environments.

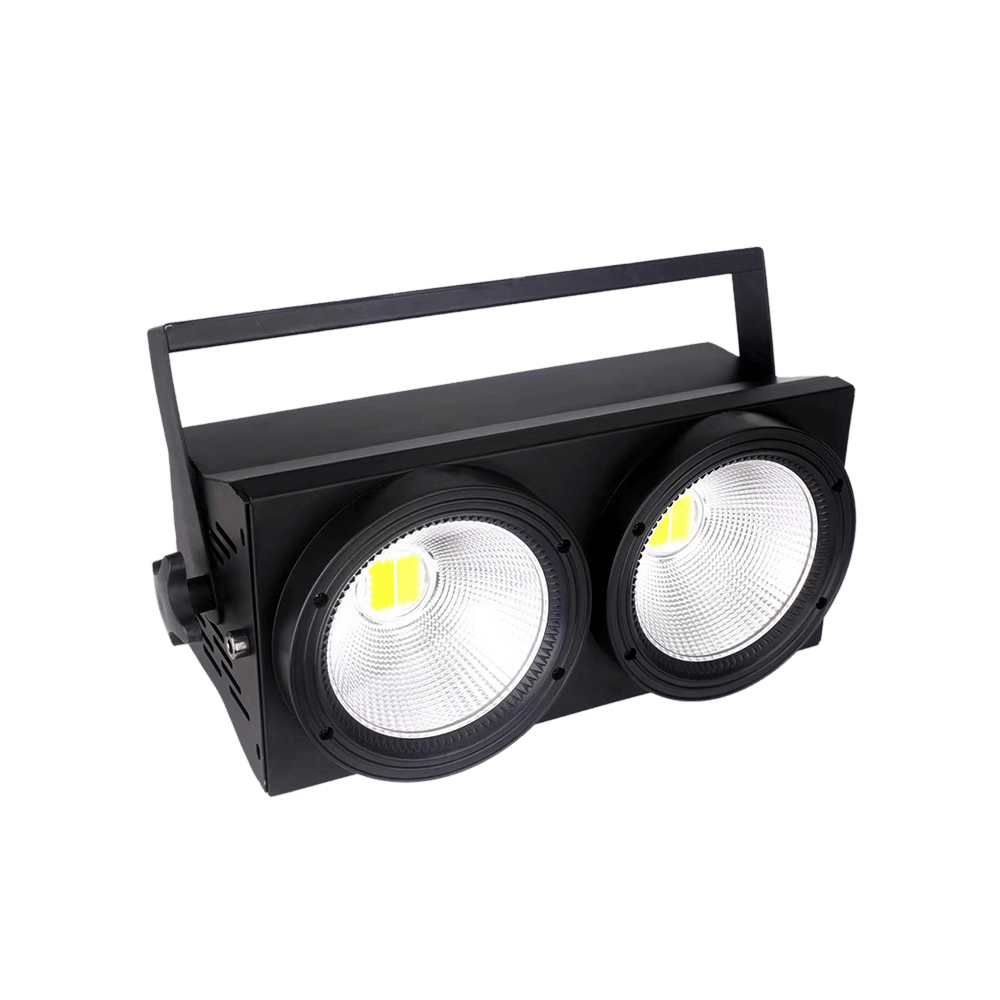

KLA-FX22BL high-performance 2 in 1 blinder front view
  • High-output dual LED system – 2 × 200W LEDs delivering powerful audience lighting effects
  • High brightness output – Up to 8000 lumens for strong illumination and exposure lighting
  • Long LED lifespan – Rated up to 20,000 hours for reliable long-term operation
  • Smooth linear dimming – 0–100% dimming for precise intensity control
  • High-speed strobe capability – Adjustable 0–25 flashes per second for dynamic stage effects
  • Professional control modes – Supports DMX512, master–slave, and manual operation
  • Multiple DMX channel modes – 6 / 13 CH for simplified or advanced control setups
  • Natural convection cooling – Efficient passive heat dissipation without additional fan noise
  • Durable aluminum housing – Robust construction suitable for touring and fixed installations

Specifications

Electrical
Input VoltageAC 100–240V, 50/60Hz
Power Consumption220W
Light Source
Main Light Source2× 100W CW+WW
Lifespan20,000 hours
Control and Programming
Control ModesDMX 512, RDM, self-running, master/slave
DMX Channels6, 13
Setting and AddressingControl panel with display
Safety
Protection RatingIP20
Minimum Ambient Temperature41°F (5°C)
Maximum Ambient Temperature104°F (40°C)
Maximum Surface Temperature176°F (80°C)
Dynamic Effects
Color Mixing3200K to 5800K linear temperature adjustment
Dimming0–100% linear dimming
Strobe1-25Hz
Effect ModesBlinder
Physical
Dimensions385 × 150 × 190 mm
Net Weight5.5 kg
Connections
AC power inputPowerCon
DMX and RDM data in/out3 Pin XLR
