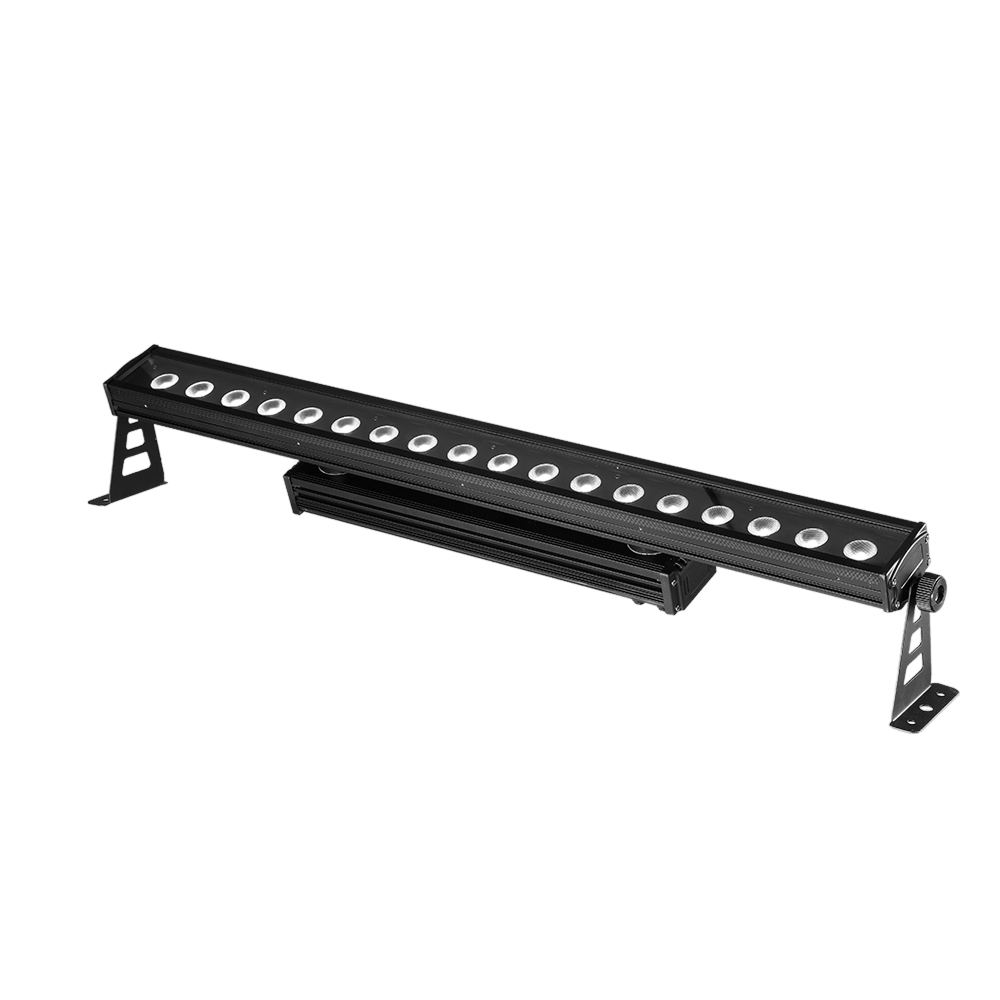

KLA-LINER 18
High performance LED wash bar
The KLA-LINER 18 is a professional LED wash bar powered by 18 × 10W RGBW LEDs, designed for stages, House of Worship, architectural lighting, and event applications. It delivers rich color washes, smooth gradients, and dynamic pixel effects through individual LED control. The fixture supports linear dimming, strobe operation up to 25Hz, and multiple DMX channel modes including 6, 9, 29, and 77-channel configurations. With a slim 1000mm linear form factor, intelligent temperature-controlled cooling, and flexible DMX 512/RDM control, the KLA-LINER 18 is engineered for professional installations requiring reliable, vibrant color performance.
- High-output LED system – 18 × 10W RGBW LEDs for powerful color wash lighting
- Advanced color mixing – RGBW LED technology provides rich colors and improved white reproduction
- Individual LED control – Each LED can be independently controlled for dynamic chase and pixel effects
- Flexible DMX channel modes – 6 / 9 / 29 / 77 CH
Specifications
Electrical
| Input Voltage | AC 100–240V, 50/60Hz |
| Power Consumption | 200W |
Light Source
| Main Light Source | 18 × 10W RGBW LEDs |
| Lifespan | 20,000 hours |
Control and Programming
| Control Modes | DMX 512, RDM, self-running, master/slave, sound-activated |
| DMX Channels | 6, 9, 29, 77 |
| Setting and Addressing | Control panel with backlit graphic display |
Safety
| Protection Rating | IP20 |
| Minimum Ambient Temperature | 41°F (5°C) |
| Maximum Ambient Temperature | 104°F (40°C) |
| Maximum Surface Temperature | 176°F (80°C) |
Dynamic Effects
| Color Mixing | RGBW additive color mixing |
| Dimming | 0–100% linear dimming |
| Strobe | 1–25 Hz |
| Effect Modes | Wash |
| Pixel Control | Point control with gradient effects |
Physical
| Dimensions | 1000 × 150 × 190 mm |
| Net Weight | 7.5 kg |
Connections
| AC power input | PowerCon |
| DMX and RDM data in/out | 3 Pin XLR |
