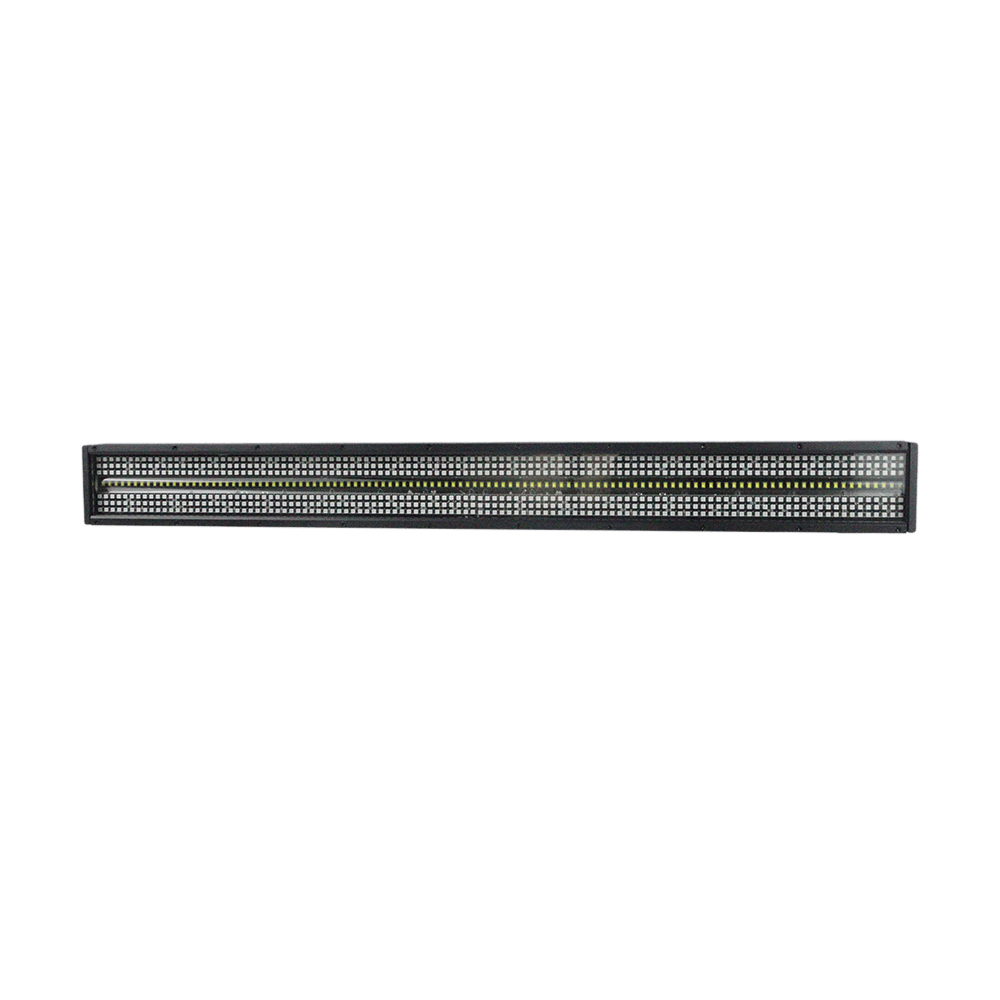

KLA-LINER 55
High-density LED Pixel Wash Bar
The KLA-LINER 55 is a high-density LED pixel wash bar designed for stages, architectural lighting, House of Worship, and event applications requiring dynamic visual effects and precise pixel control. Powered by high-output 7575 LED beads and RGB LEDs, it delivers vibrant color washes, smooth gradients, and complex pixel-mapped effects. The fixture supports linear dimming, high-speed strobe operation, and multiple effect modes including single-pixel control. Engineered for stable, long-term performance, it features intelligent temperature-controlled cooling, flexible DMX control options, and a slim linear form factor, making it ideal for creative lighting designs and demanding professional environments.
- High-density LED system – Optimized for pixel wash and effect applications
- High-output LED configuration – 240 × 5W 7575 LED beads combined with 480 × 0.3W RGB LEDs for rich color depth and visual impact
- Long LED lifespan – Rated up to 20,000 hours for reliable long-term operation
- High-speed strobe effects – Variable strobe frequency from 1–30Hz
- Advanced effect capabilities – Supports flashing, wash, pixel gradient effects and pulse changes.
- Individual LED point control – Enables detailed pixel mapping, chases, and gradient effects
- Multiple DMX channel modes – 4 / 13 / 36 / 96 / 105 / 168 CH for simple to advanced programming
- Lightweight design – Compact size for easy installation and ideal for truss mounting and touring use
Specifications
Electrical
| Input Voltage | AC 100–240V, 50/60Hz |
| Power Consumption | 450W |
Light Source
| Main Light Source | 480 × 0.3W RGB LEDs |
| Auxiliary Light Source | 240 × 5W high-power 7575 LED beads |
| Lifespan | 20,000 hours |
Control and Programming
| Control Modes | DMX 512, RDM, self-running, master/slave, sound-activated |
| DMX Channels | 4, 13, 36, 96, 105, 168 |
| Setting and Addressing | Control panel with backlit graphic display |
Safety
| Protection Rating | IP20 |
| Minimum Ambient Temperature | 41°F (5°C) |
| Maximum Ambient Temperature | 104°F (40°C) |
| Maximum Surface Temperature | 176°F (80°C) |
Dynamic Effects
| Color Mixing | RGBW additive color mixing |
| Dimming | 0–100% linear dimming |
| Strobe | 1–30 Hz |
| Effect Modes | Wash |
| Pixel Control | Point control with gradient effects |
Physical
| Dimensions | 1000 × 70 × 80 mm |
| Net Weight | 4.4 kg |
Connections
| AC power input | PowerCon |
| DMX and RDM data in/out | 3 Pin XLR |
