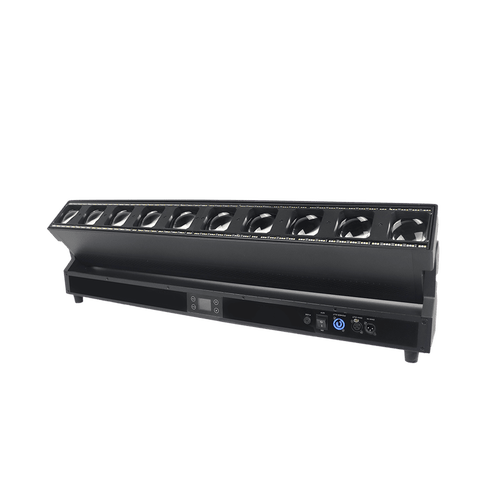

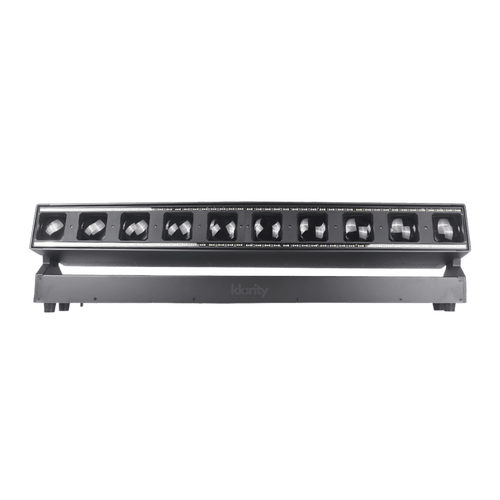

KLA-LINER 800M
High Power Moving wash zoom bar
The KLA-LINER 800M is a high-output professional moving wash zoom bar fixture engineered for architectural installations, auditoriums, and touring applications. Featuring a powerful 800W LED light engine with 10 × 60W RGBW LEDs, it delivers strong, uniform wash output with smooth color mixing and precise beam control. The fixture offers a 4°-56° motorized zoom, linear CTO adjustment, and advanced dimming performance, enabling both wide-area washes and focused beam effects. Designed for durability and reliability, it incorporates intelligent temperature control, fast and smooth movement making it ideal for demanding professional lighting environments.
KLA-LINER 800M product video
- High-output - High-output performance driven by 10 × 60W RGBW LEDs
- Wide zoom range (4°-56°) - Seamless transition from narrow beam effects to wide wash coverage
- RGBW color mixing system - Smooth, saturated color blending with consistent output
- Linear CTO adjustment (2500K-8000K) - Precise color temperature control for daylight-to-tungsten
- High CRI performance - CRI up to 90 Ra for accurate color rendering in camera and stage applications
- Advanced optical focus system - Electric linear focus with 0-100% adjustment
- High-speed strobe - 1-30Hz with selectable random and pulse strobe modes
- Professional dimming - 0-100% smooth dimming with linear, exponential, reverse, and S-curve
- Fast, smooth movement - Precision scanning with 16-bit resolution
- Flexible DMX channel modes - 17 / 27 / 99 / 108 / 168 / 170 CH for simple to advanced programming
Specifications
Electrical
| Input Voltage | AC 100-240V, 50/60Hz |
| Power Consumption | 800W |
Light Source
| Main Light Source | 10 × 60W RGBW LEDs |
| Auxiliary Light Source | 96 × 3W CM LEDs + 96 × 3W WW LEDs + 94 × 0.5W RGB LEDs |
| Lifespan | 20,000 hours |
Optics
| Zoom Angle | 4°-56° |
| Optical System | High-precision glass lens system |
| Color Rendering Index (CRI) | 90Ra |
Control and Programming
| Control Modes | DMX 512, RDM, self-running, master/slave, sound-activated |
| DMX Channels | 17, 27, 99, 108, 168, 170 |
| Setting and Addressing | Control panel with backlit graphic display |
Safety
| Protection Rating | IP20 |
| Minimum Ambient Temperature | 41°F (5°C) |
| Maximum Ambient Temperature | 104°F (40°C) |
| Maximum Surface Temperature | 176°F (80°C) |
Dynamic Effects
| Color Mixing | RGBW additive color mixing |
| Color Temperature Control | CTO, Variable 2500K-8000K |
| Dimming | 0-100% linear dimming |
| Strobe | 1-30 Hz |
| Effect Modes | Wash, beam, swing focus |
| Pixel Control | Individual LED pixel control |
Movement
| Zoom | Motorized |
| Tilt | 202° |
Physical
| Dimensions | 1000 × 118 × 283 mm |
| Net Weight | 24 kg |
Connections
| AC power input | PowerCon |
| DMX and RDM data in/out | 3 Pin XLR |
