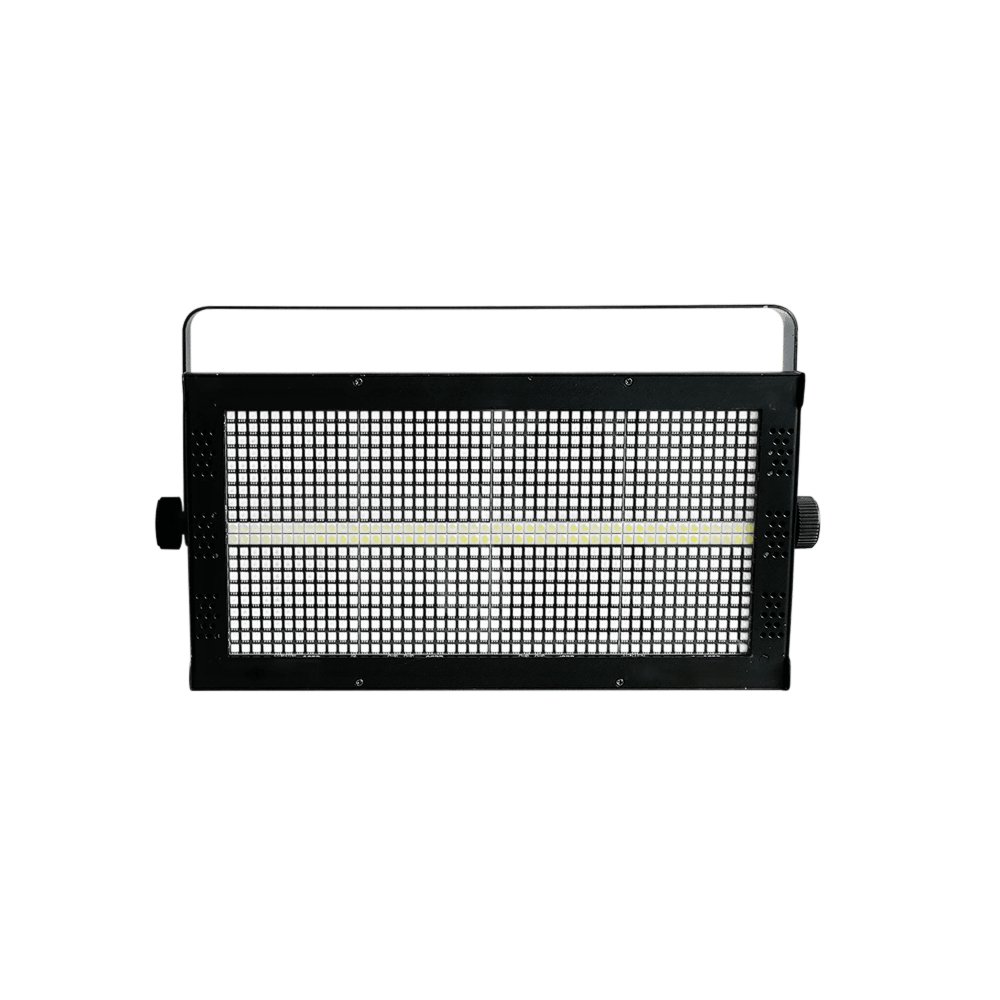

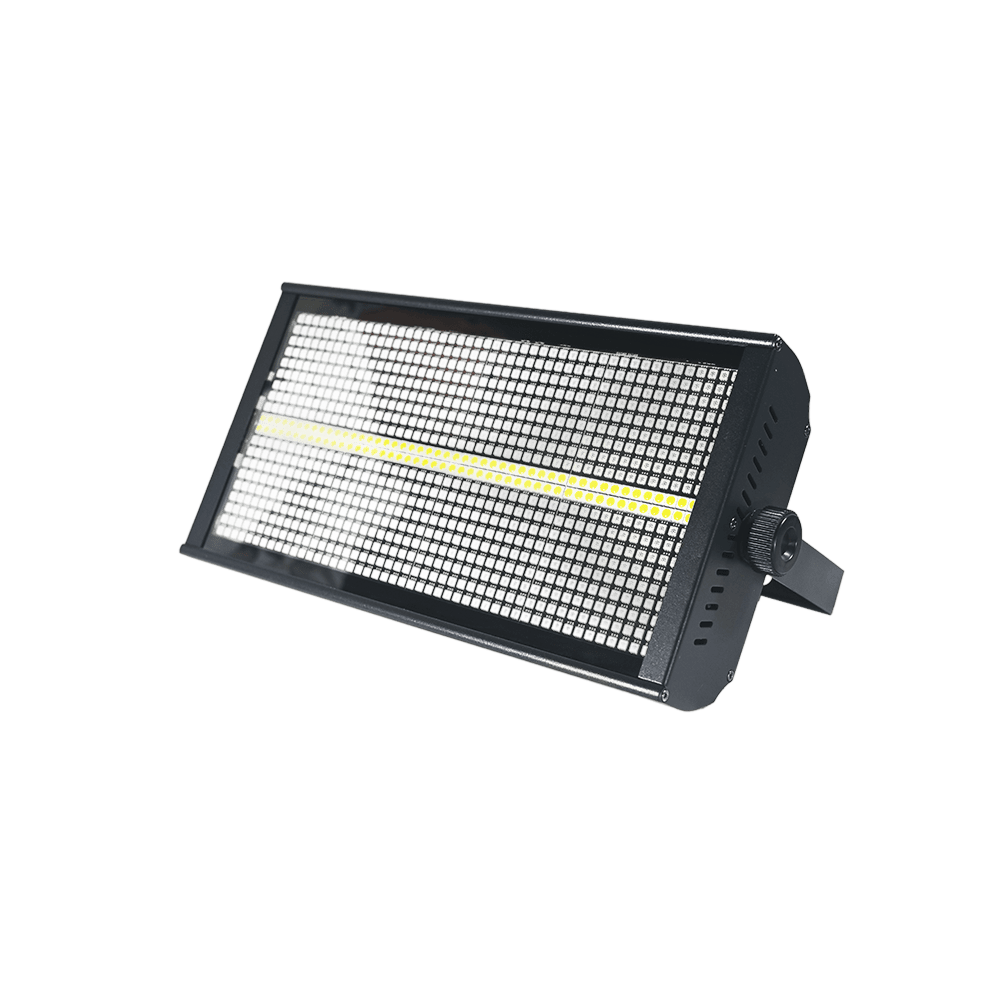

KLA-S960
High-performance LED Strobe Light
The KLA-S960 is a high-performance LED strobe light designed for indoor stages, events, House of Worship, and effect-driven lighting applications. Powered by a 280W LED system combining high-density RGB LEDs and high-output white LEDs, it delivers intense strobe flashes, dynamic color effects, and pixel-based visual patterns. The fixture supports 32-bit linear dimming, high-speed strobe operation, and advanced segment and pixel control, enabling everything from traditional white strobe effects to creative color and chase patterns. Engineered for reliability and precision, it features intelligent temperature-controlled cooling, flexible DMX control options, and a compact form factor, making it ideal for professional indoor strobe and effect lighting environments.
- High-density LED configuration – 960 × 0.3W RGB LEDs combined with 96 × 3W white LEDs for powerful flashes and rich color effects
- Long LED lifespan – Rated up to 20,000 hours for stable, long-term performance
- 32-bit linear dimming – Ultra-smooth 0–100% intensity control for precise strobe and effect tuning
- High-speed strobe operation – Variable strobe frequency from 1–30Hz
- Advanced strobe effects – Flash, dye, pulse change, jump effects, and dynamic color strobing
- Segmented effect engine – Built-in 8-segment running effects for dynamic visual sequences
Specifications
Electrical
| Input Voltage | AC 100–240V, 50/60Hz |
| Power Consumption | 450W |
Light Source
| Main Light Source | 960 × 0.3W RGB (3-in-1) LEDs |
| Auxiliary Light Source | 96 × 3W white LEDs |
| Lifespan | 20,000 hours |
Control and Programming
| Control Modes | DMX 512, RDM, self-running, master/slave, sound-activated |
| DMX Channels | 4, 11, 32, 39 |
| Setting and Addressing | Control panel with display |
Safety
| Protection Rating | IP20 |
| Minimum Ambient Temperature | 41°F (5°C) |
| Maximum Ambient Temperature | 104°F (40°C) |
| Maximum Surface Temperature | 176°F (80°C) |
Dynamic Effects
| Color Mixing | RGBW additive color mixing |
| Dimming | 0–100% linear dimming |
| Strobe | 1–30 Hz |
| Effect Modes | Wash |
| Pixel Control | Individual LED point control with gradient effects |
Physical
| Dimensions | 480 × 220 × 80 mm |
| Net Weight | 3.8 kg |
Connections
| AC power input | PowerCon |
| DMX and RDM data in/out | 3 Pin XLR |
